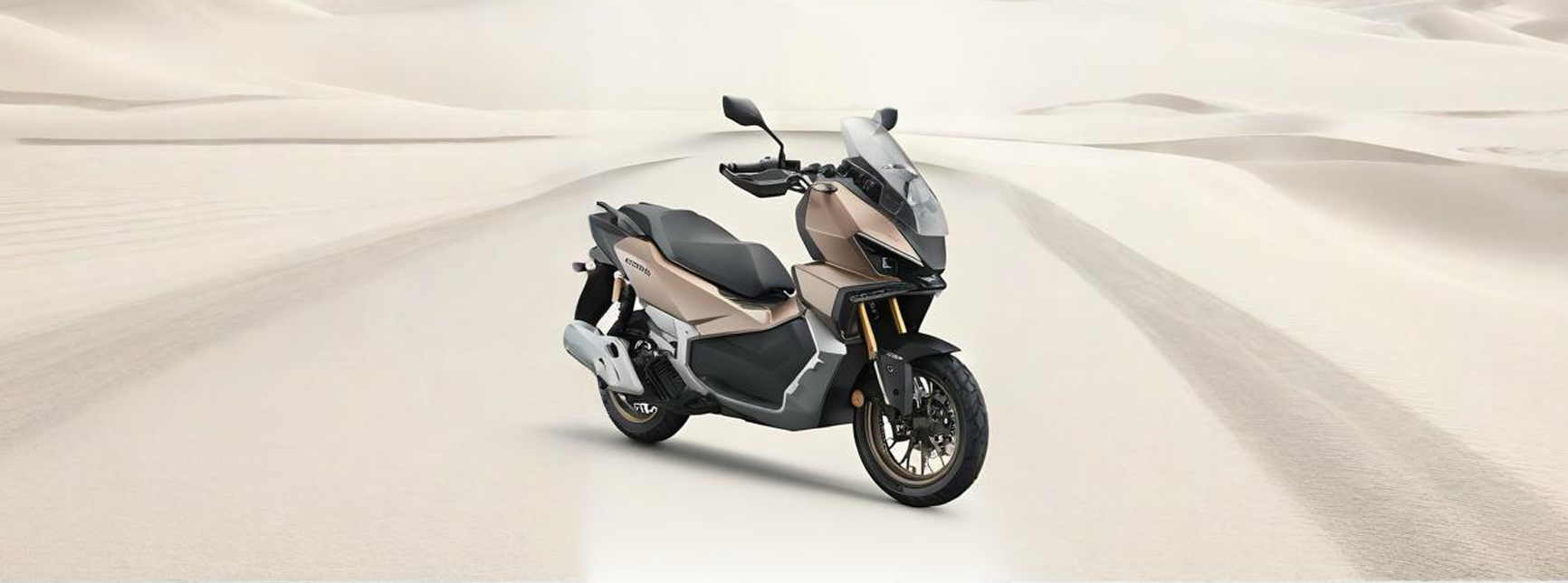

NS150XC

“X-Design” LED Headlight

Fitted with Philips high/low beams and welcome-sequence lighting on start-up

LED Auto-Sensing Headlight

Automatically switches low-beam on/off according to day/night conditions

LED Tail Light

Side-emitting and diffuse-reflection technology for instant visibility

PGM-FI Fuel Injection System

Precisely controls fuel injection volume

I-Stop

Cuts fuel use—greener riding

ACG Silent Start

Silent ignition, serene ride

KYB130mm

Inverted long-travel front fork
Precise response on rough roads

KYB110mm

Gas-charged long-travel rear shock
Greater adaptability to varying loads and terrain

28.6 mm Tapered Handlebar

Uses side-emitting and diffuse-reflection technology
Ultra-high visibility

Premium Features for Safer Journeys

Cornering ABS

First fitment of BOSCH MSC dynamic stability system
Enhanced cornering stability and safety
Premium Features for Safer Journeys

MAXXIS All-terrain Tyres

Unique tread pattern for stronger grip
Premium Features for Safer Journeys

BOSCH Dual-Channel ABS

Greater braking stability, prevents wheel lock-up
Premium Features for Safer Journeys

TCS

Prevents wheel-spin, guards every ride
Premium Features for Safer Journeys

Large-Diameter Disc Brakes

Wave-pattern discs: 240 mm F / 220 mm R for stable braking

NISSIN Front & Rear Brake Calipers

Confident, efficient braking

4-Way Switch Design

Easy integrated adjustment with the meter
TCS, hazards, dimmer at your fingertips
T-BOX Smart Connectivity

Multiple smart functions for effortless travel
Every ride begins in quiet comfort
SMK Smart Keyless System

Multiple unlock options, one-touch start
Front & Rear Dash Cameras

Protect your ride with long-duration recording
*STD version has front camera only
2-Position Adjustable Windscreen

Tailored to your preferred riding scenario
4-Way Switch Design

Easy integrated adjustment with the meter
TCS, hazards, dimmer at your fingertips
T-BOX Smart Connectivity

Multiple smart functions for effortless travel
Every ride begins in quiet comfort
SMK Smart Keyless System

Multiple unlock options, one-touch start
Front & Rear Dash Cameras

Protect your ride with long-duration recording
*STD version has front camera only
2-Position Adjustable Windscreen

Tailored to your preferred riding scenario

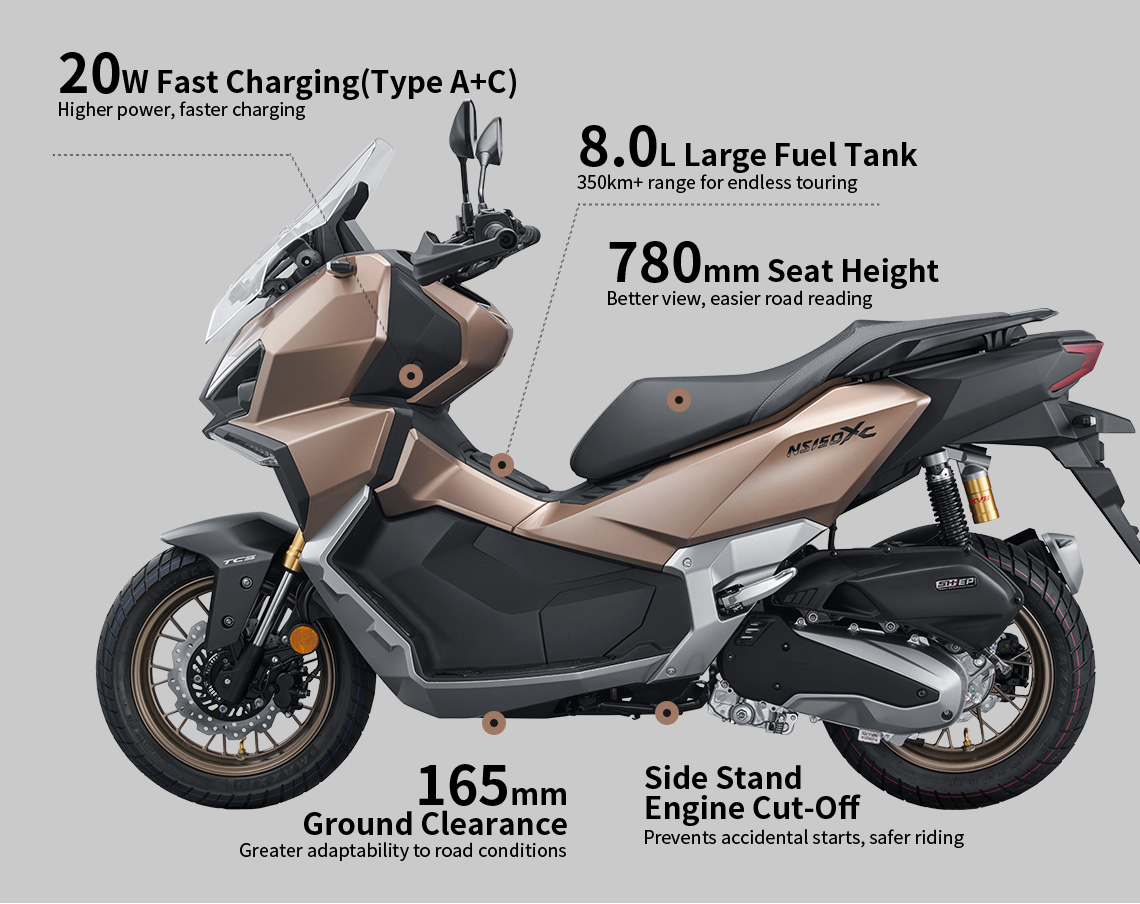

Thoughtful Design for Maximum Comfort

20W Fast Charging (Type A + C)
8.0L Large Fuel Tank
780mm Seat Height
165 mm Ground Clearance
Side Stand Engine Cut-Off
Thoughtful Design for Maximum Comfort

Oversized Under-Seat Storage

Fits a full-face helmet, with partitioned dividers for effortless stowage
Thoughtful Design for Maximum Comfort

Sport-Style Seat

Built-in mini backrest reduces lumbar strain
Thoughtful Design for Maximum Comfort

Handle Guards

Reduces wind blast for more comfortable handling
Thoughtful Design for Maximum Comfort

Two-Position Opening Angle

Easier access to under-seat luggage

NS150XC Configuration

Frame Parameters

Length(mm) 1983 2078
Width(mm) 820 820
Height(mm) 1300 1322
Seat Height(mm) 780 780
Curb Weight(kg) 143 152
Fuel Tank Capacity(L) 8 8
Maximum Speed(km/h) 105 105
Official Average Fuel Consumption(L/100km) 2.35L/100Km 2.35L/100Km
Wheelbase(mm) 1336 1336
Minimum Ground Clearance(mm) 165 165
Front Tire 110/80-14M/C 53P 110/80-14M/C 53P
Rear Tire 130/70-13M/C 63P 130/70-13M/C 63P
Brake Hydraulic brake system (dual-channel ABS + cornering ABS, dual disc front & rear) Hydraulic brake system (dual-channel ABS + cornering ABS, dual disc front & rear)

Engine Parameters

Engine Type Horizontal, Water-cooled, single-cylinder 4-valve, 4-stroke Horizontal, Water-cooled, single-cylinder 4-valve, 4-stroke
Maximum Power(kW/rpm) 11.4/8500 11.4/8500
Maximum Torque(N·m/rpm) 14.4/6500 14.4/6500
Displacement(cc) 149.7 149.7
Engine Cylinder 1 1
Bore x Stroke(mm) 58.6X55.5 58.6X55.5
Type of Cooling Water-cooled Water-cooled
Compression Ratio 12:01 12:01
Starting Method Electric Electric
