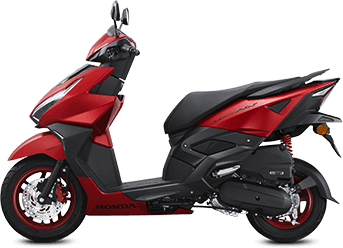

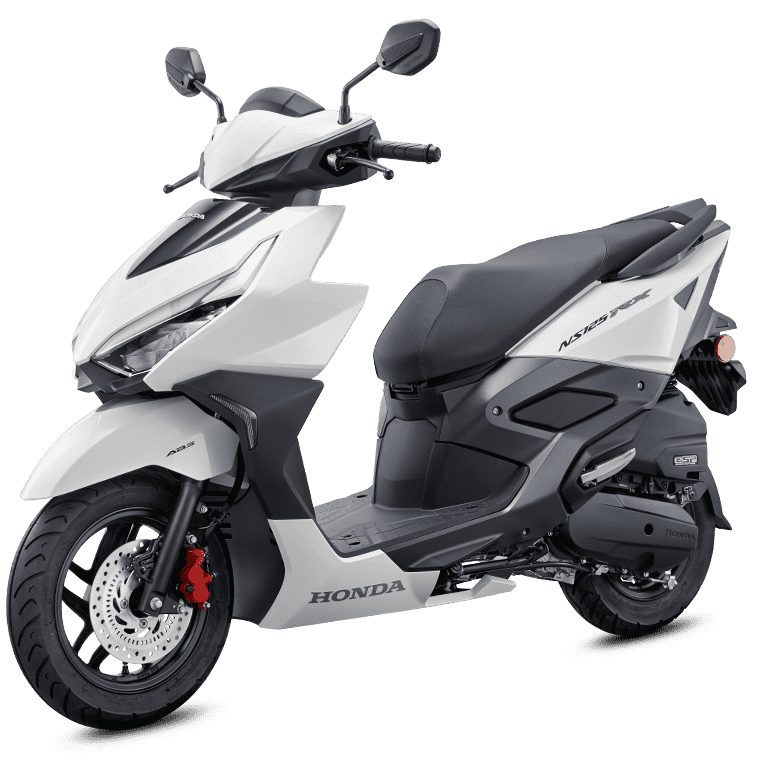

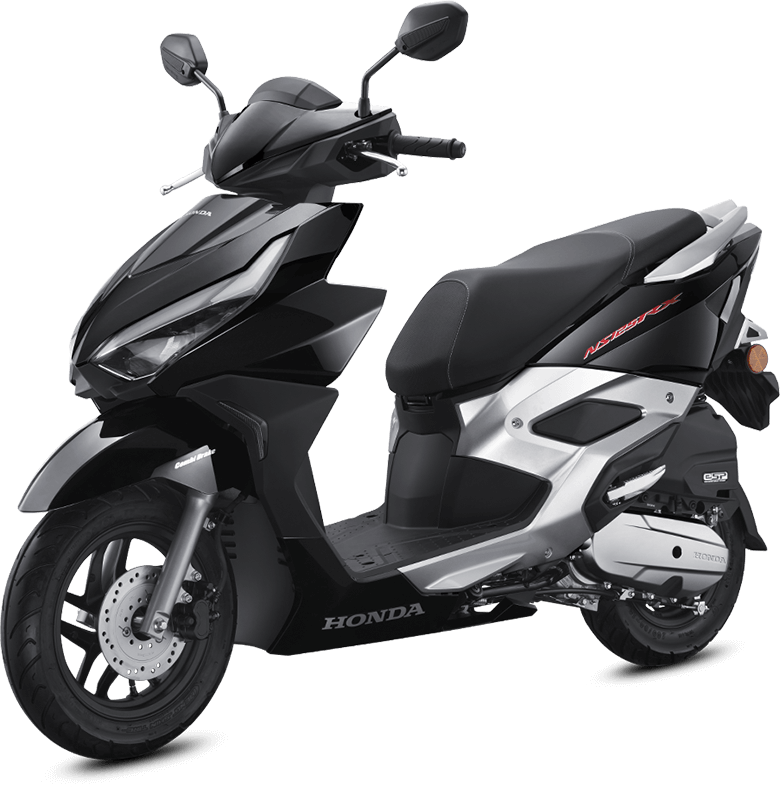

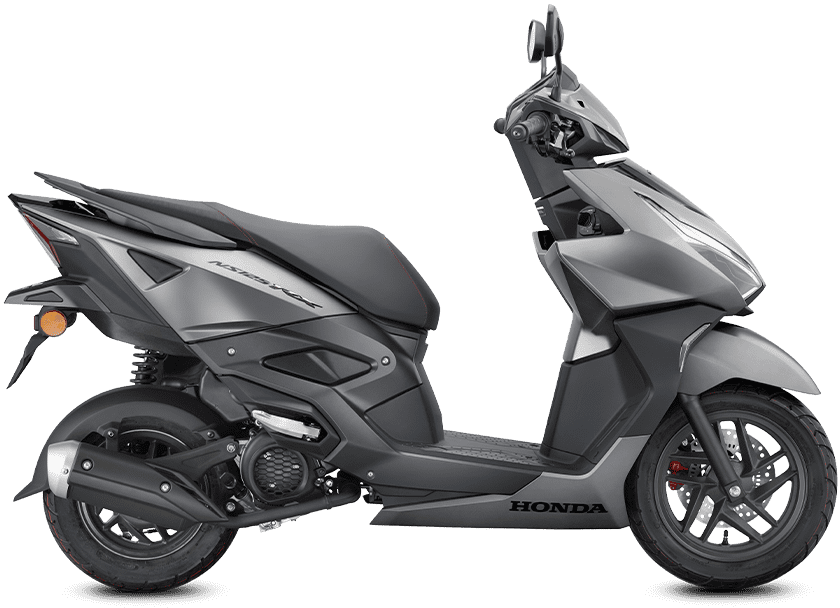

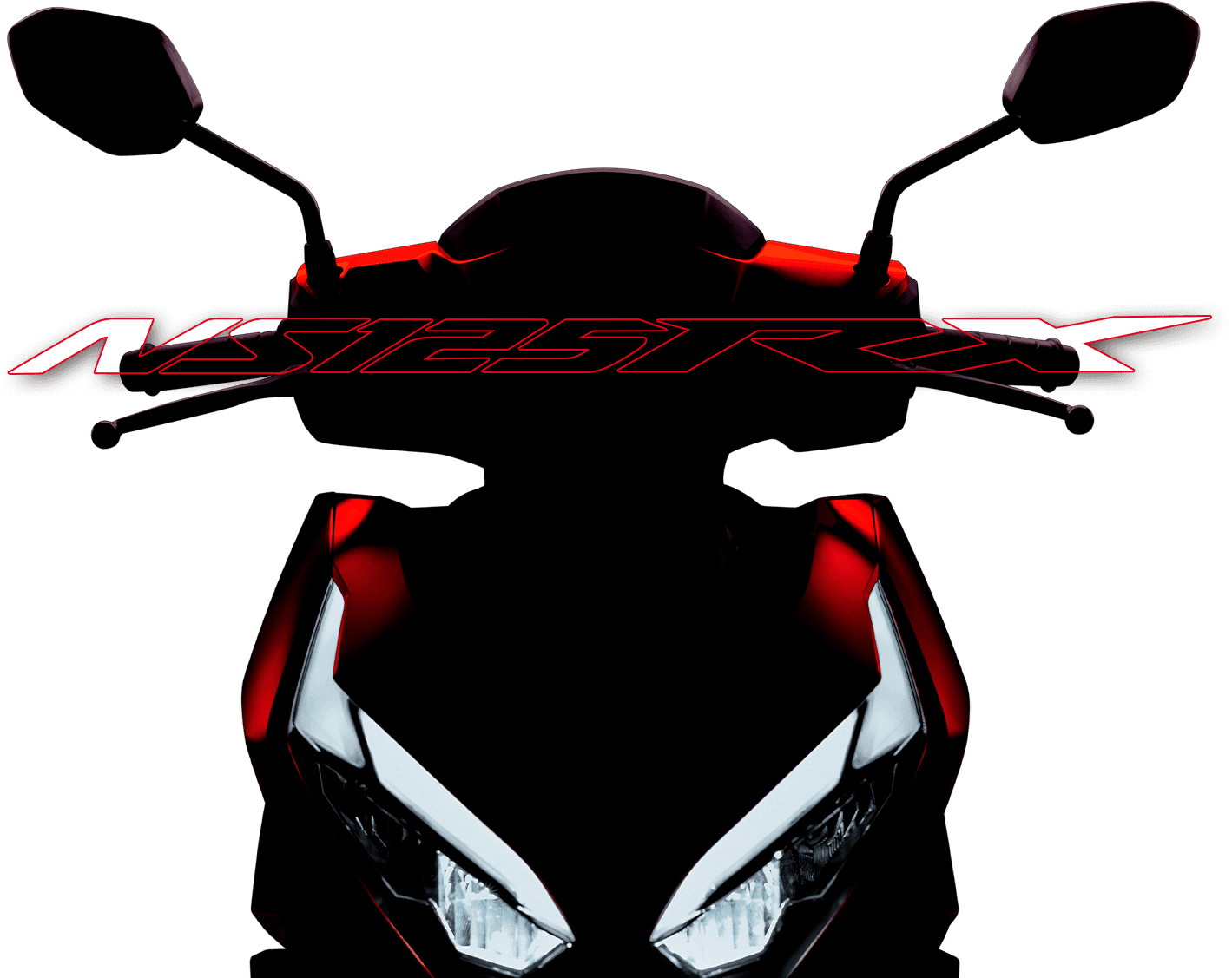

NS125RX

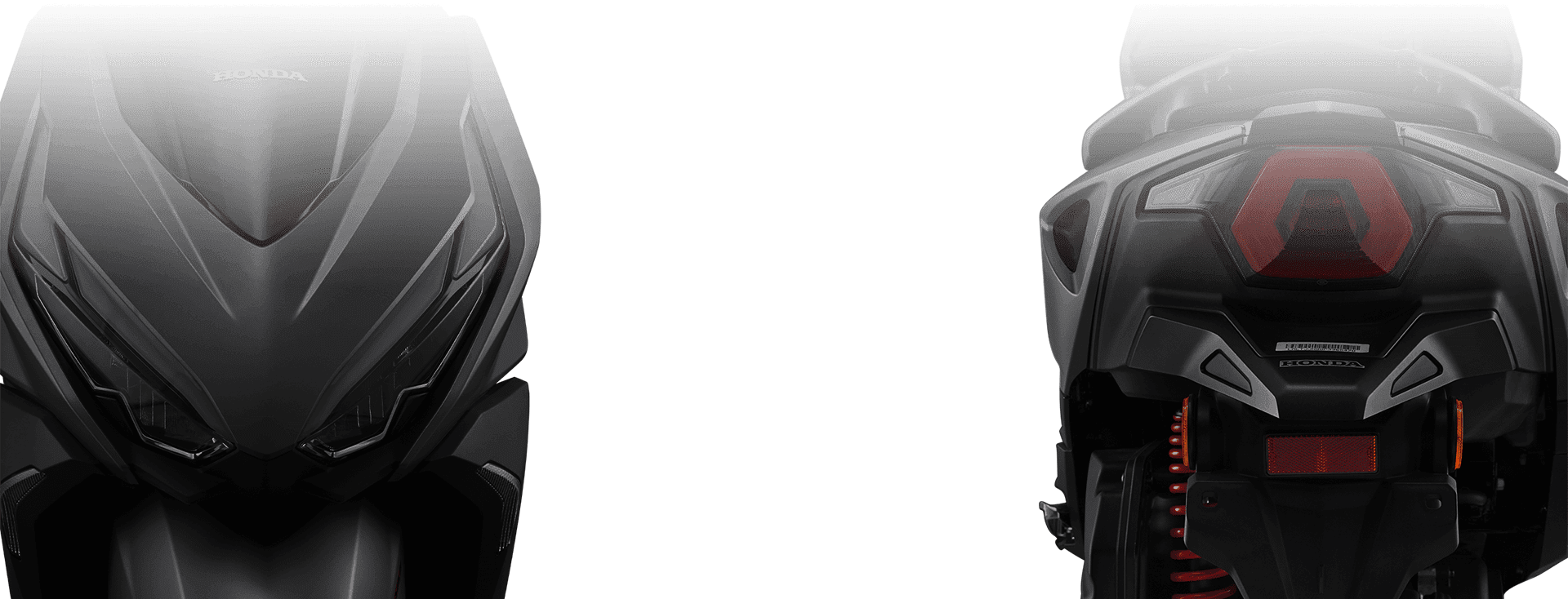

Advanced Design , Sharp and Stylish

A standout, trendsetting look that breaks free from conventions.
Venturing into uncharted territories, and pushing performance to the limit.
Strap on your helmet, unleash your spirit, and fuel the fire of adventure.

Advanced Tech Features for Streamlined Smart Riding

Honda Smart-Key System is equipped across all models,

supporting keyless start, anti-theft, vehicle locating, and auto-lock functions,

making every ride simpler, more convenient, and safer.

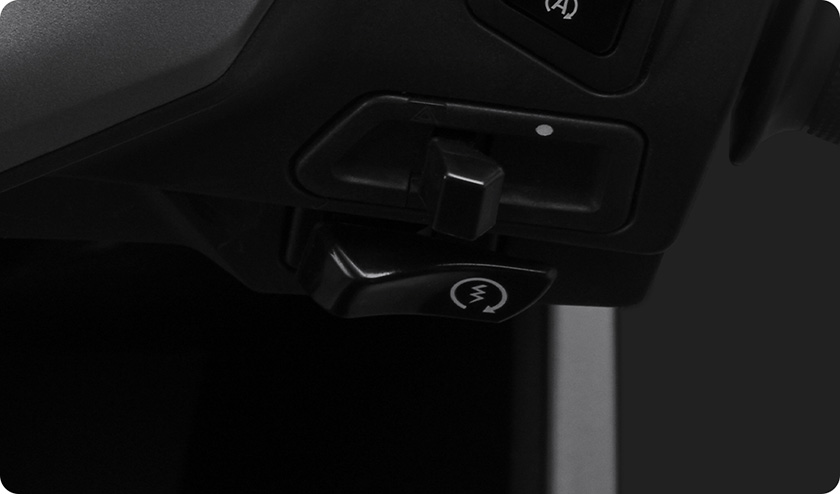

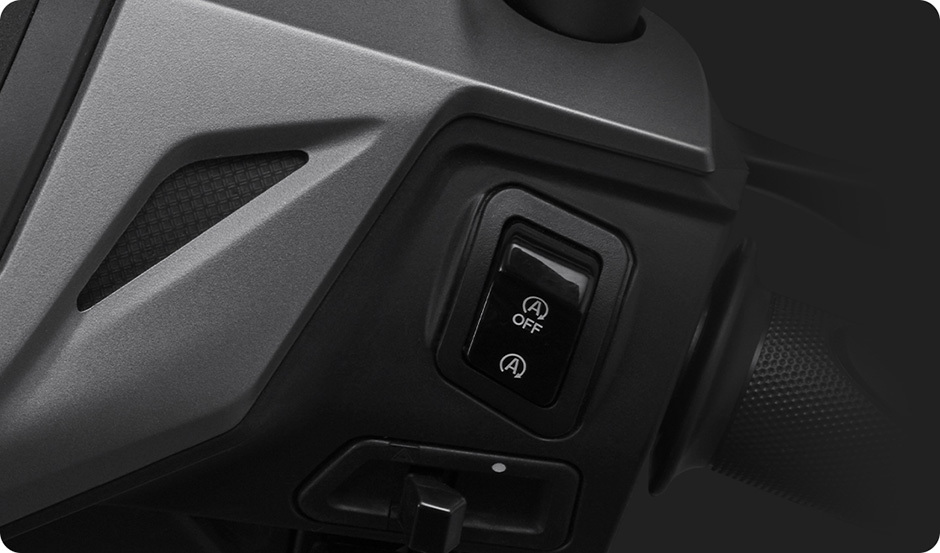

I-STOP Idle-Stop System

Automatically shuts off the engine during idle moments,
enhancing comfort during stops at red lights
ACG Silent Start Technology

Combines the magneto and starter motor into one,
delivering a smoother and quieter engine start experience.

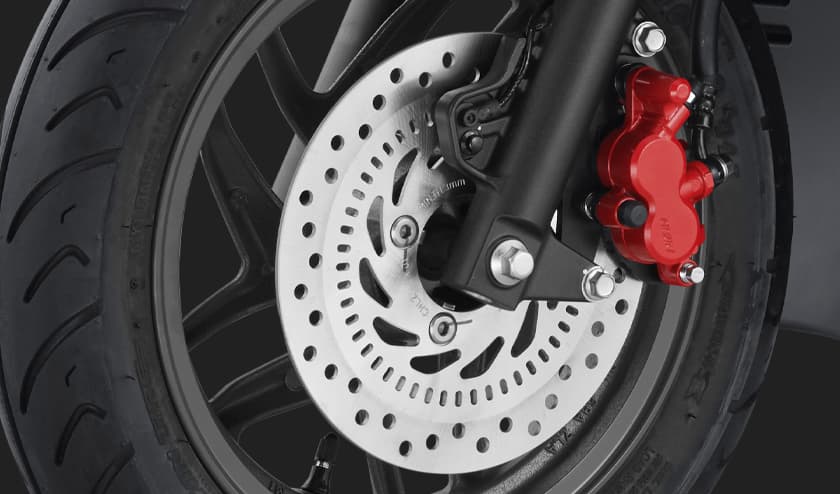

NISSIN Imported ABS

Paired with a 220mm large-diameter disc brake.
Undergone rigorous test on complex road conditions.
Effectively prevents wheel lock-up during emergency braking, significantly reducing vehicle wobble and the risk of falling.
Side Stand Engine Cut-Off

Prevents the engine from starting if the side stand is not fully retracted.
Automatically shuts off the engine when the side stand is deployed after parking.

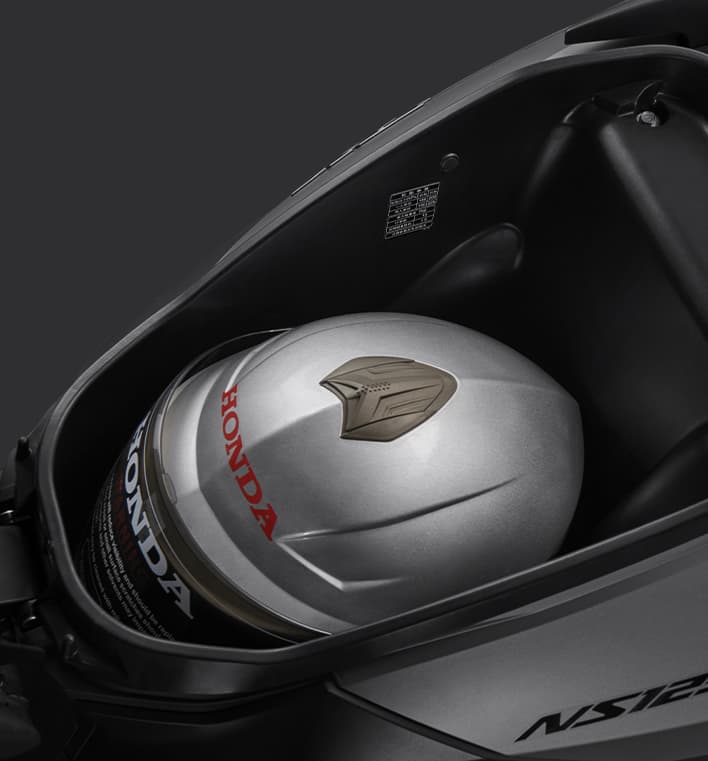

Under-Seat Storage

Spacious enough to accommodate a small full-face helmet or a full-size half helmet.

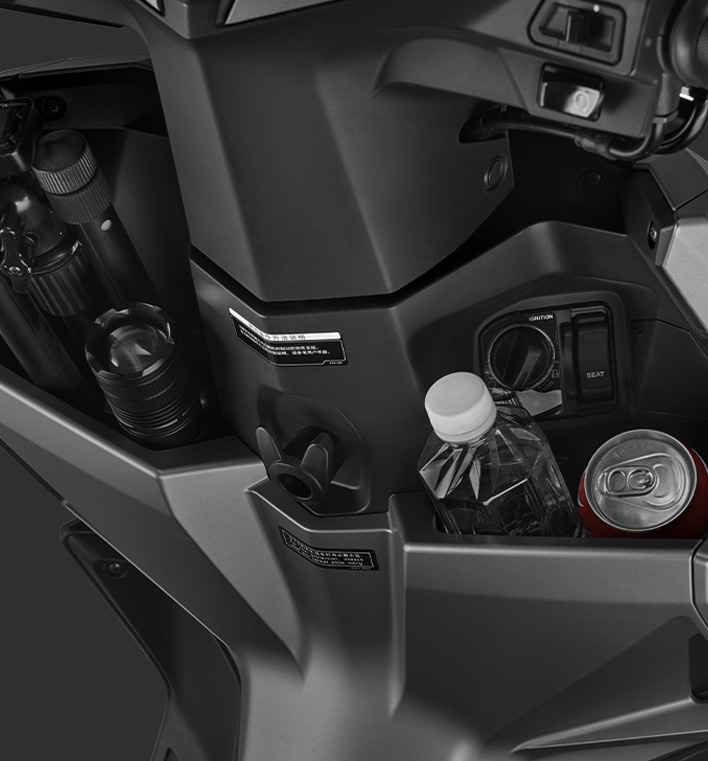

Dual Side Storage Boxes

Each side features a 1.8L large-capacity front storage box.Capable of holding 2-3 bottles of 500ml drinks simultaneously.
Parking Brake

Effectively prevents rolling on slopes.

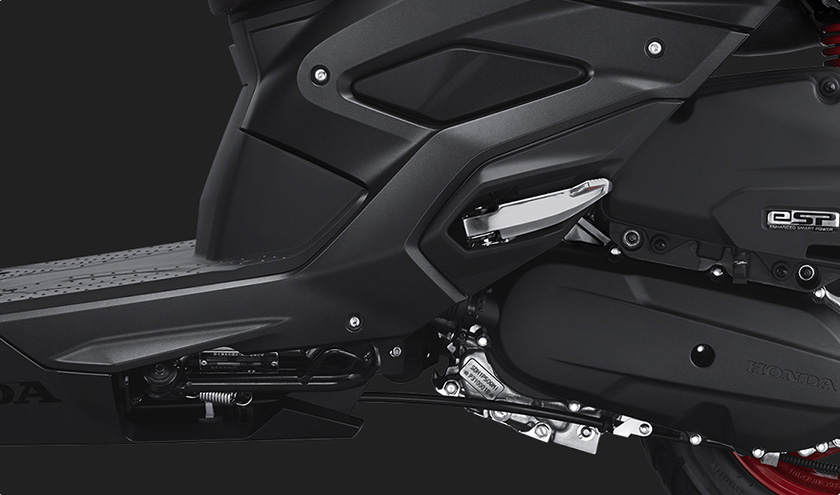

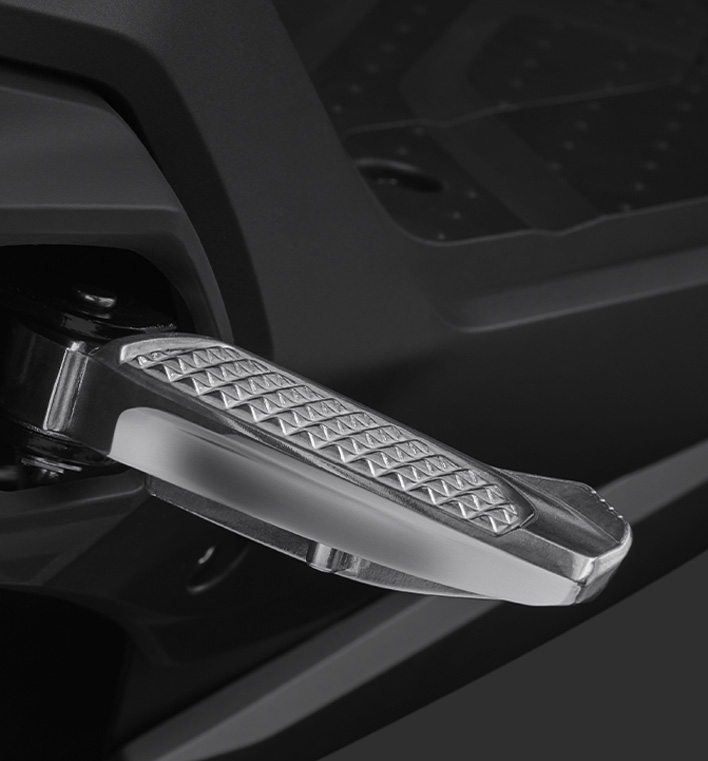

Foldable Footrests

Designed with foldable rear footrests to enhance comfort for rear-seat passengers.
Front Hook

Sturdy and anti-slip, perfect for convenient daily use.
Under-Seat Storage

Spacious enough to accommodate a small full-face helmet or a full-size half helmet.
Dual Side Storage Boxes

Each side features a 1.8L large-capacity front storage pocket.Capable of holding 2-3 bottles of 500ml drinks simultaneously,
Parking Brake

Effectively prevents rolling on slopes.
Foldable Footrests

Designed with foldable rear footrests to enhance comfort for rear-seat passengers.
Front Hook

Sturdy and anti-slip, perfect for convenient daily use.

NS125RX Parameter Configuration Table

Model and price
NS125RX
CBS Version

MSRP

11999￥
NS125RX
ABS Version

MSRP

12999￥

Colors
PEARL PROCYON BLACK

PEARL SUNBEAM WHITE

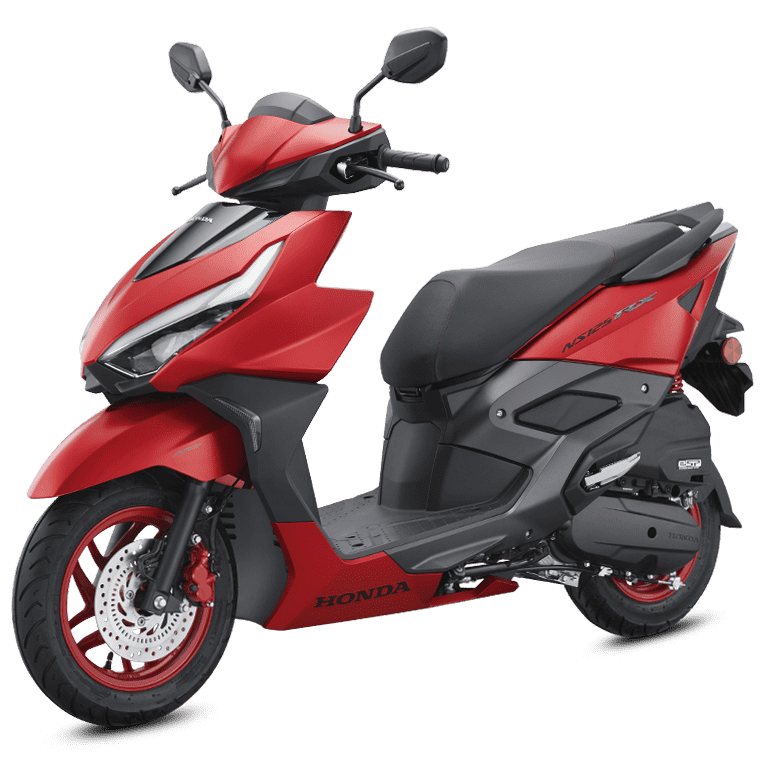

MAT CANDY SUNSET RED

MAT VOLCANIC ASH GRAY METALLIC

MAT FLAT SILVER METALLIC

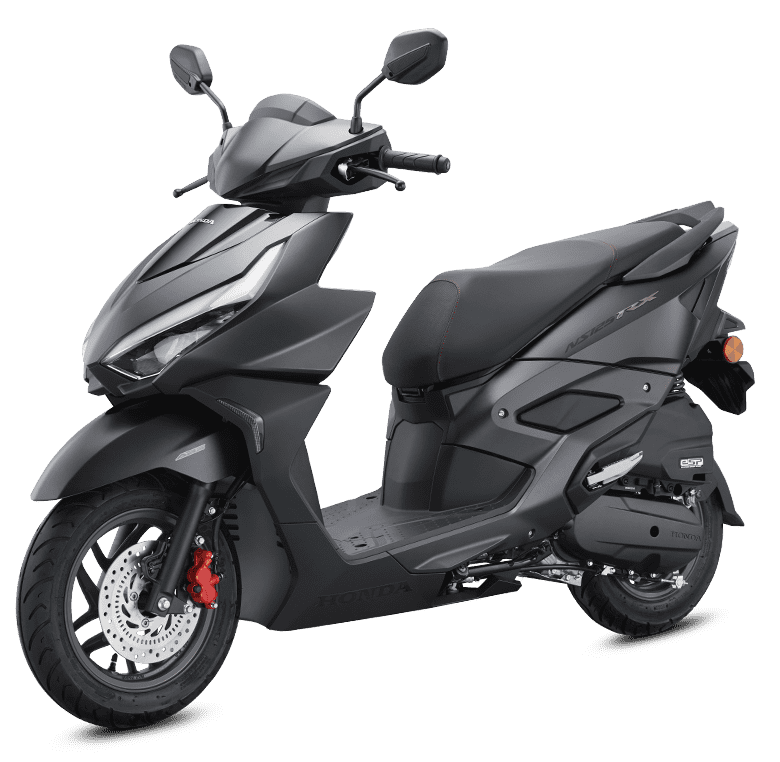

MAT BALLISTIC BLACK METALLIC

PEARL SUNBEAM WHITE

Frame Parameters

Length(mm) 1767 1767
Width(mm) 683 683
Height(mm) 1115 1115
Seat Height(mm) 770 770
Curb Weight(kg) 106 106
Fuel Tank Capacity(L) 5.7 5.7
Maximum Speed(km/h) 88 88
Official Average Fuel Consumption(L/100km) 1.9 1.9
Wheelbase(mm) 1246 1246
Minimum Ground Clearance(mm) 132 132
Front Tire 90/90-12 44J 90/90-12 44J
Rear Tire 100/90-10 56J 100/90-10 56J
Brake FR DISK/RR DRUM FR DISK/RR DRUM

Engine Parameters

Engine Type Single-cylinder, 4-stroke, air-cooled Single-cylinder, 4-stroke, air-cooled
Maximum Power(kW/rpm) 7/7750 7/7750
Maximum Torque(N·m/rpm) 10.0/5750 10.0/5750
Displacement(cc) 124 124
Engine Cylinder Single-cylinder Single-cylinder
Bore x Stroke(mm) 50.000×63.121 50.000×63.121
Type of Cooling Air-cooled Air-cooled
Compression Ratio 10.0:1 10.0:1
Starting Method Electric Electric
