CBF190R

142 kg

Curb Weight
12 L

Fuel Tank Capacity
107 km/h

Maximum Speed
769 mm

Seat Height

View complete parameters

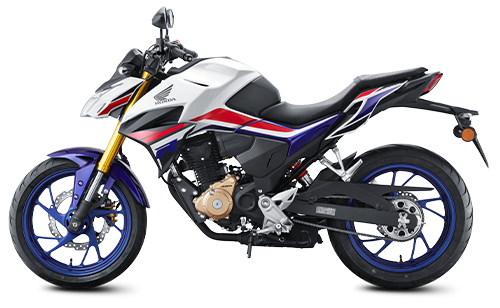

2023 CBF190R

A perfect balance of sensory appeal, performance,
and ease of operation.

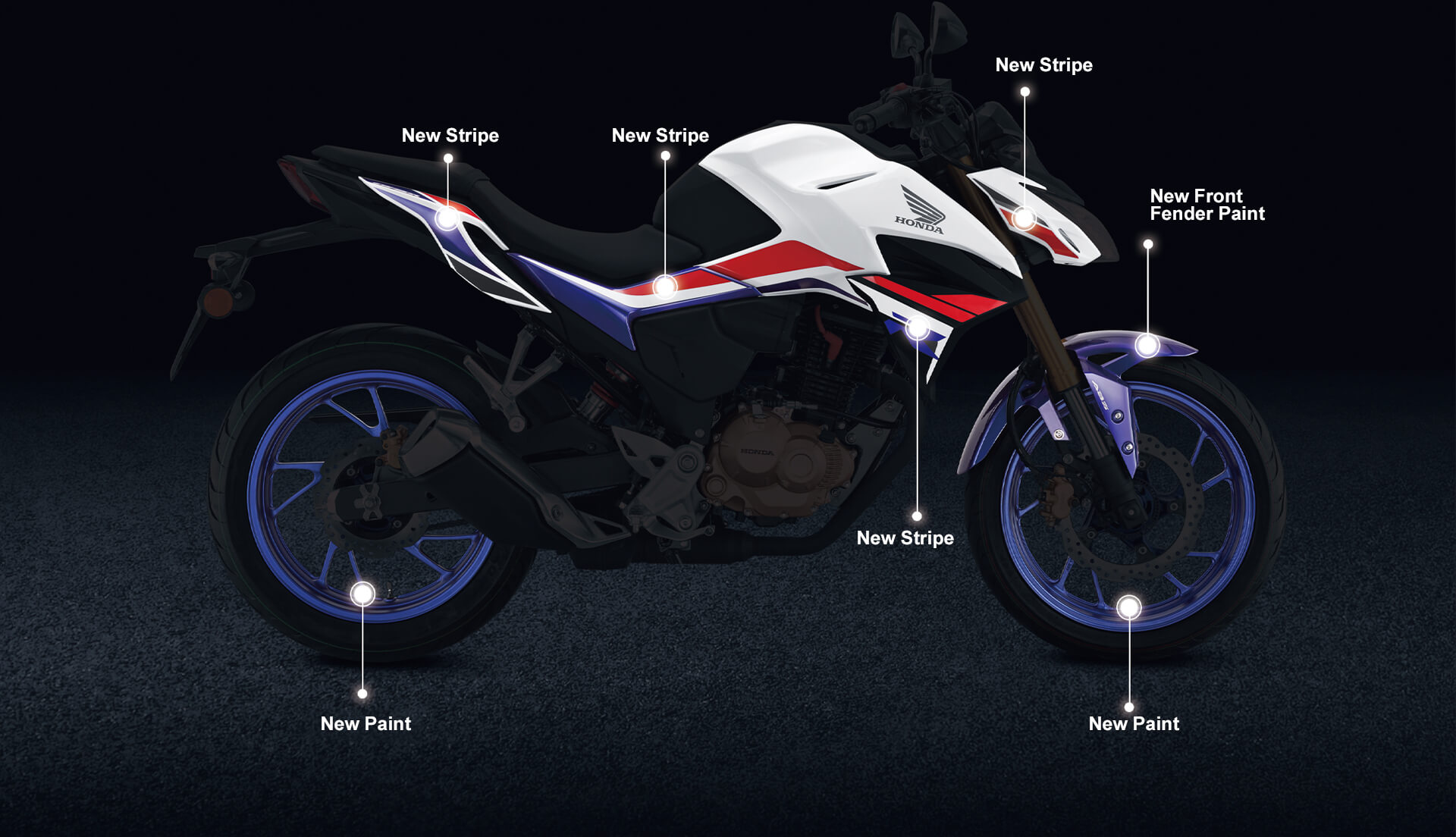

The new stripes and color schemes exude a
cutting-edge style.

Making every ride a striking scene on the road.

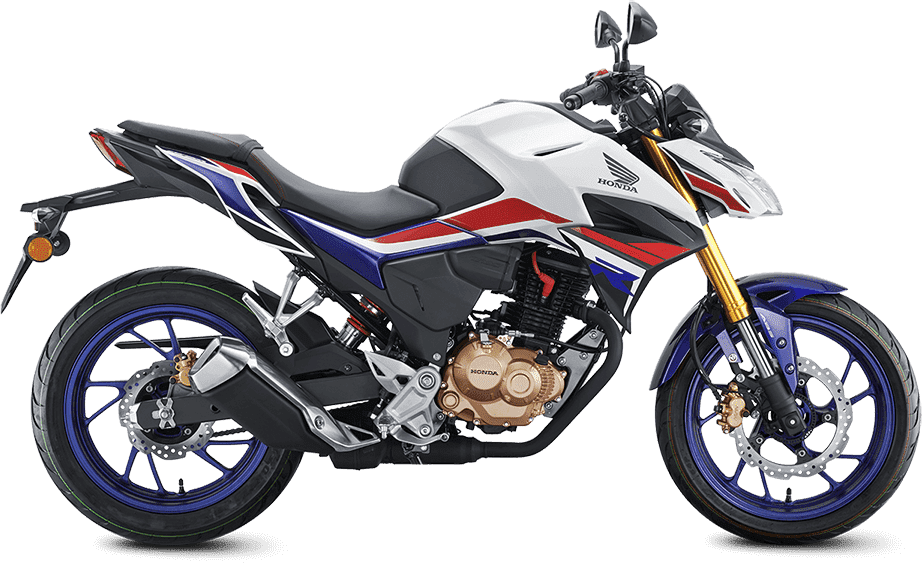

Advanced Excellence, Full of Power and Beauty

The 2023 CBF190R retains the internationally avant-garde body design of the 2019 model,
now paired with newly designed trendy stripes. It showcases the allure of speed and sporty elegance.

Premium Features for Safe Travel

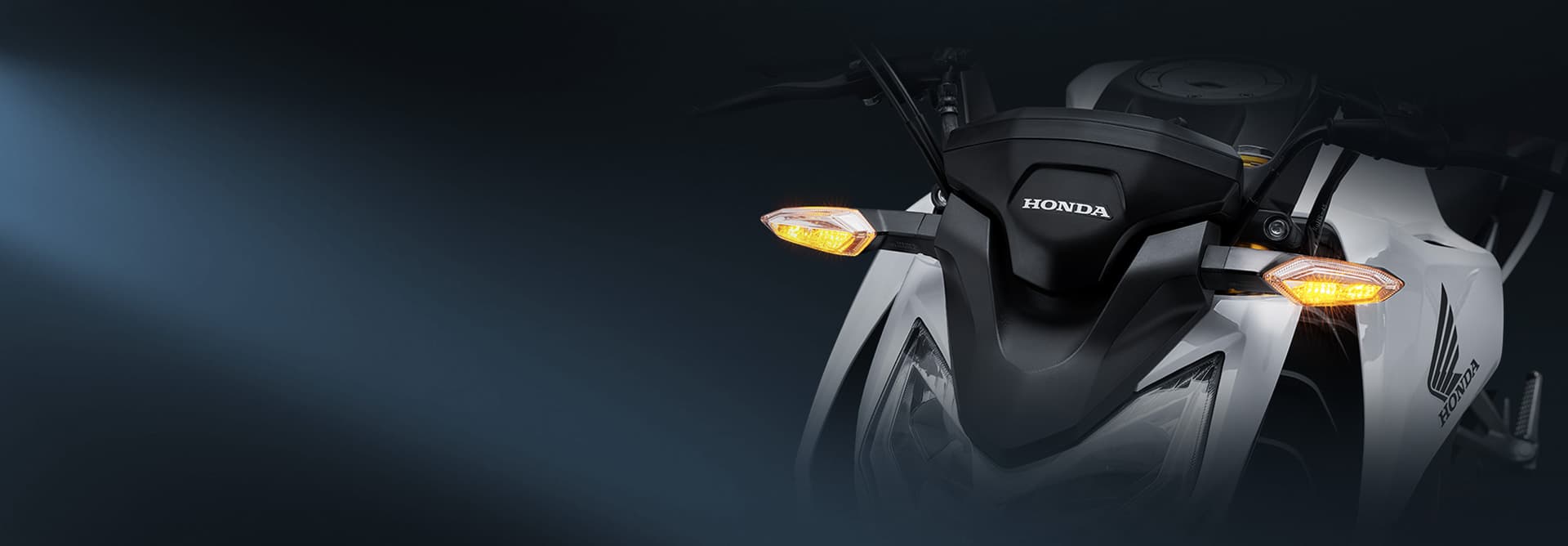

Hazard Warning Lights

Quick and responsive alerts, whether in motion or during temporary stops.

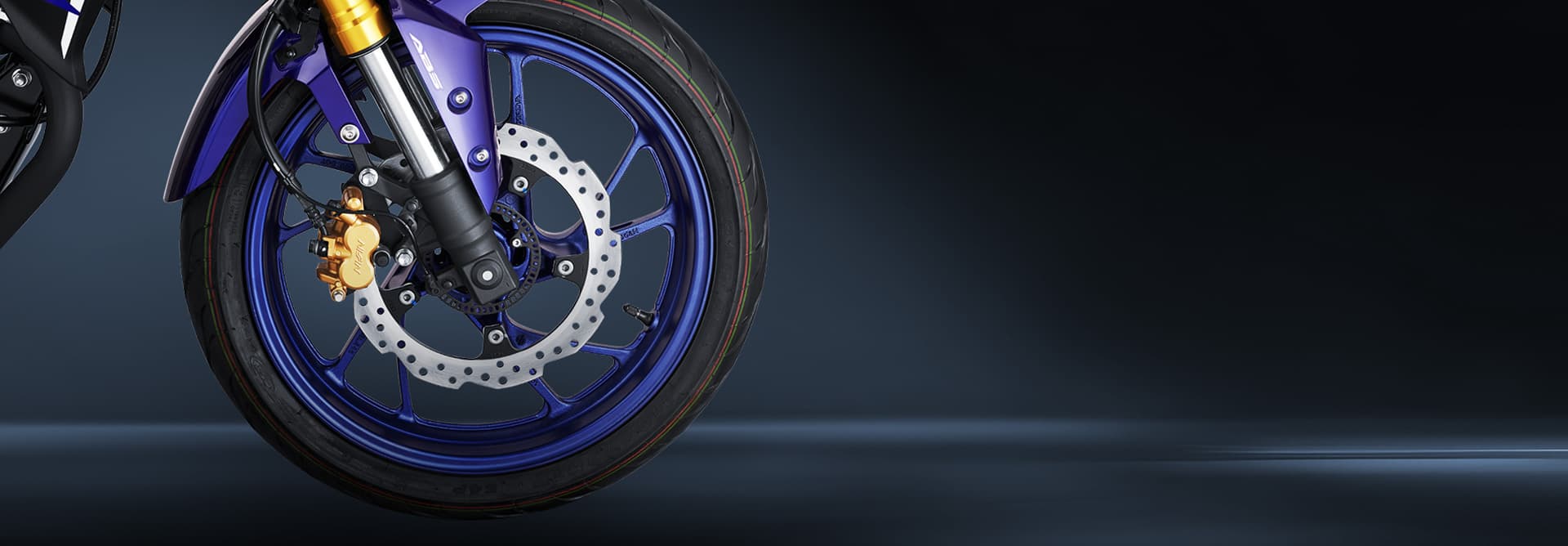

Front-Wheel Single-Channel ABS

Enhanced braking confidence on complex road conditions.

Thoughtful Design for Comfortable Travel

Aluminum Alloy Handlebars

Lightweight and stylish, offering a premium tactile feel.

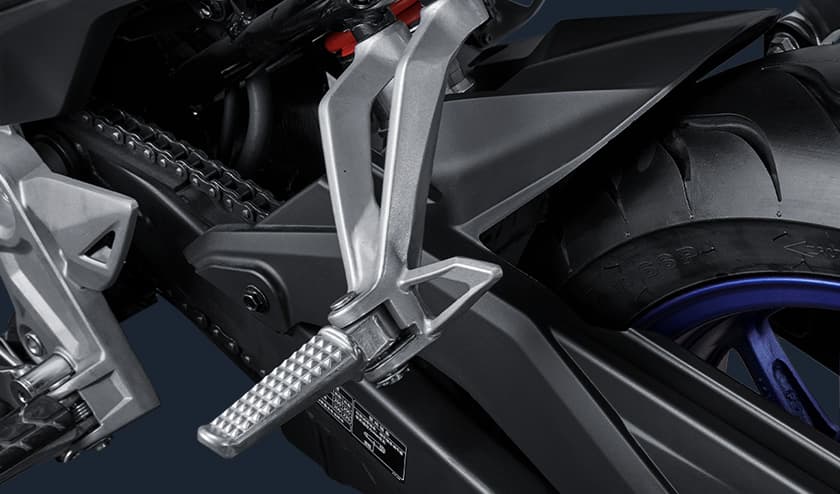

Aluminum Alloy Footrests

Sleek and fashionable, providing convenience and comfort for rear-seat passengers.

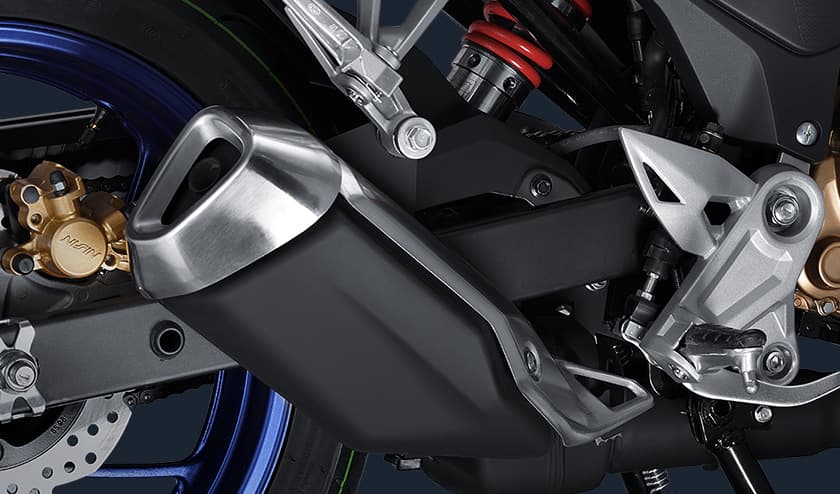

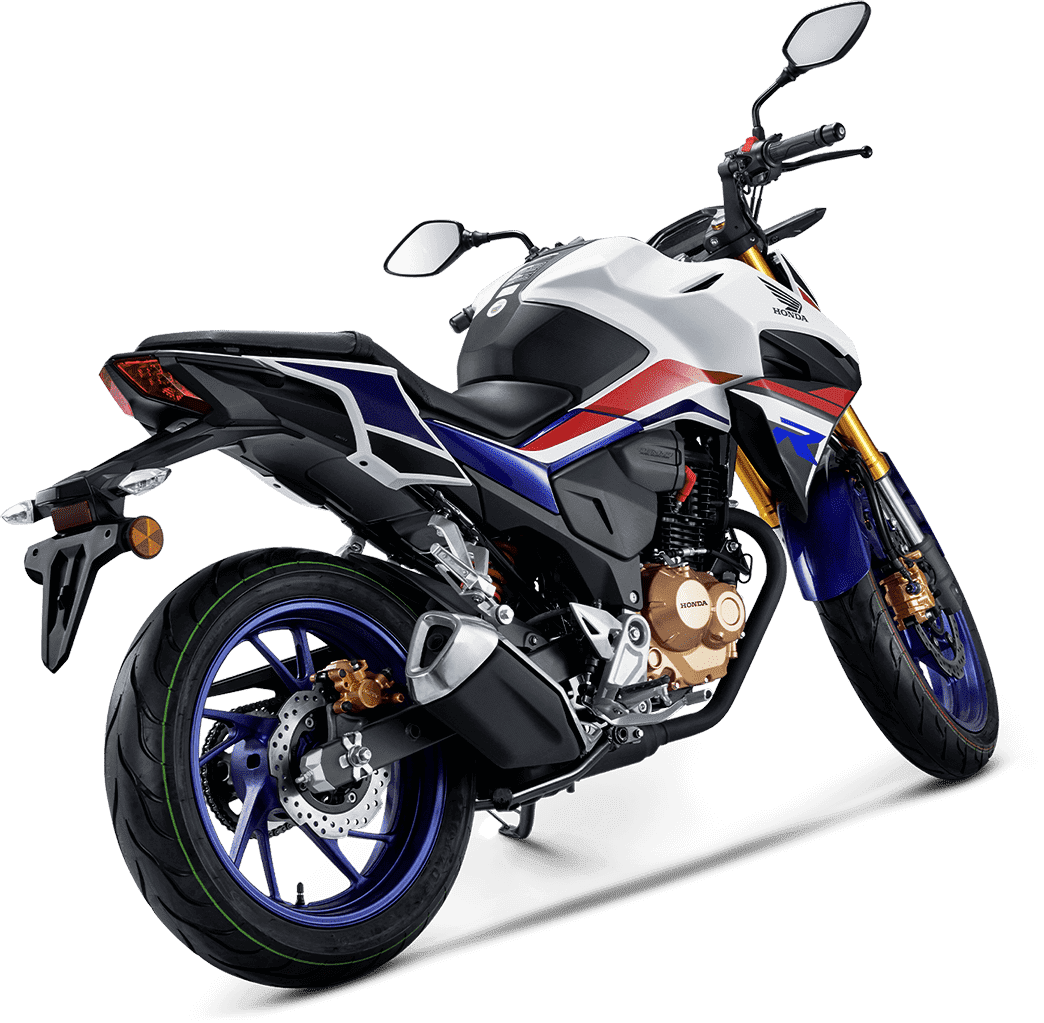

Stylish Short Muffler

Paired with a stainless steel decorative cover, combining refined aesthetics with safety.

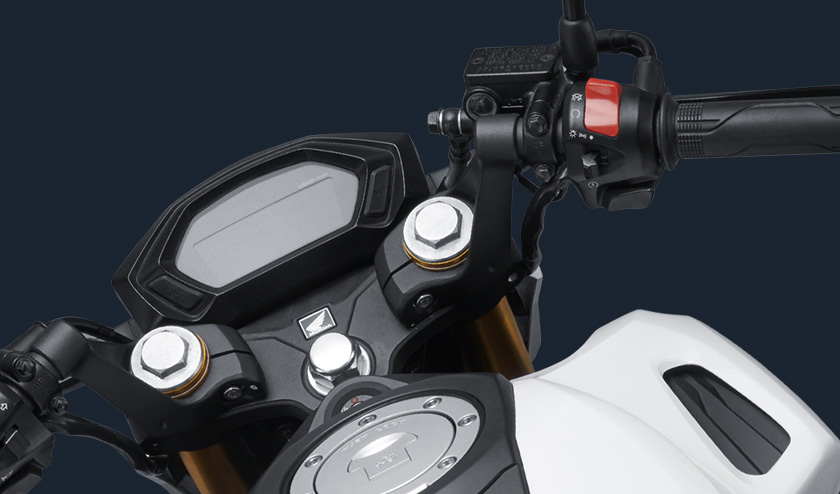

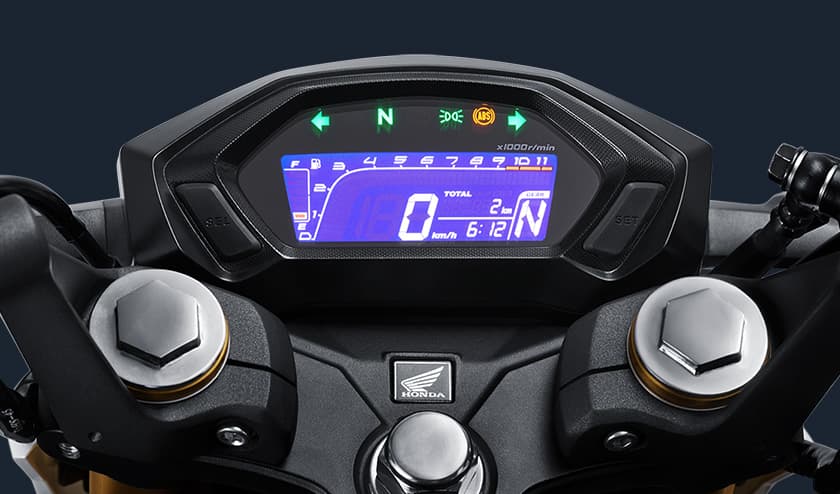

LCD Digital Dashboard

Outstanding appearance with clear and comprehensive riding data.

CBF190R Parameter Configuration Table

Model and price
CBF190R
Standard Version

MSRP

-￥
CBF190R
Special Version

MSRP

-￥

Colors

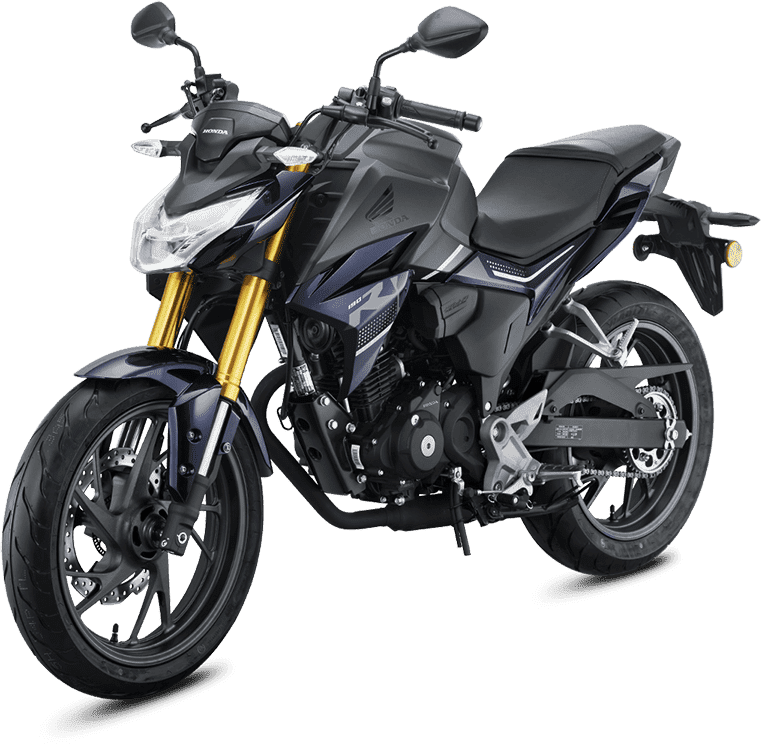

MAT BALLISTIC BLACK METALLIC

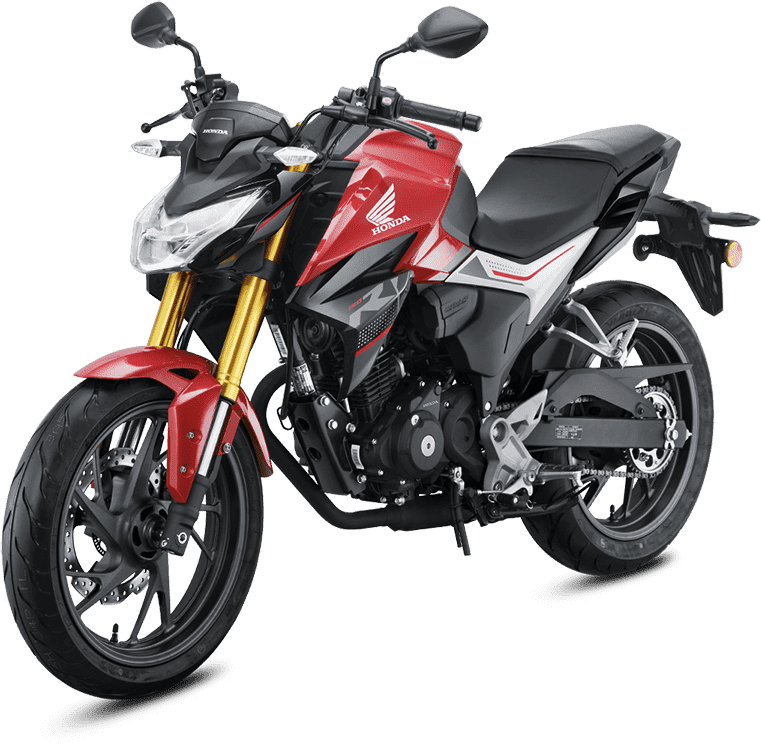

CANDY LUCID RED

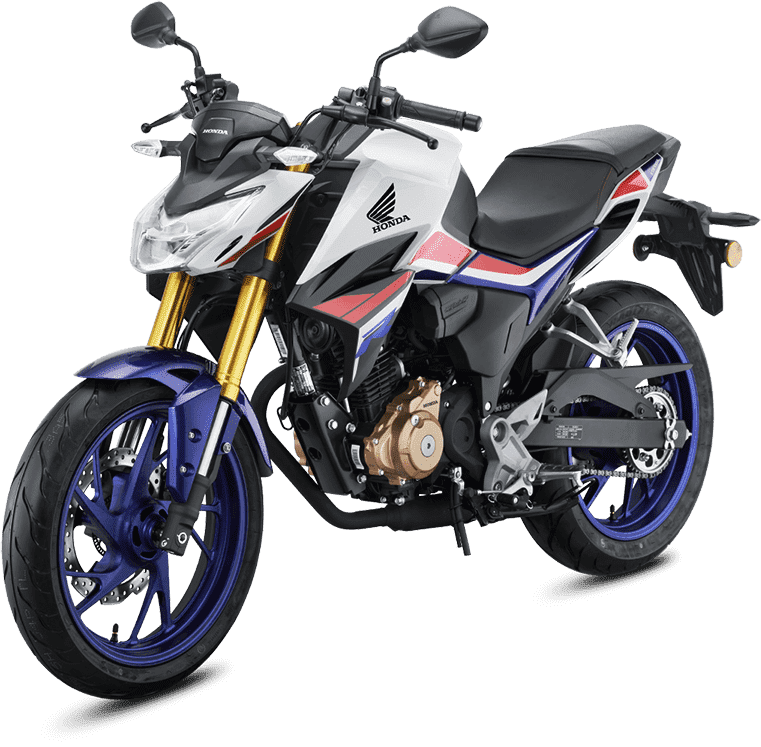

TRICOLOR

Frame Parameters

Length(mm) 2029 2029
Width(mm) 739 739
Height(mm) 1041 1041
Seat Height(mm) 769 769
Curb Weight(kg) 142 142
Fuel Tank Capacity(L) 12 12
Maximum Speed(km/h) 107 107
Official Average Fuel Consumption(L/100km) 2.1 2.1
Wheelbase(mm) 1356 1356
Minimum Ground Clearance(mm) 150 150
Front Tire 110/70R-17 M/C 54P 110/70R-17 M/C 54P
Rear Tire 140/70R-17 M/C 66P 140/70R-17 M/C 66P
Brake FR DISK/RR DISK FR DISK/RR DISK

Engine Parameters

Engine Type Single-cylinder, 4-stroke, air-cooled Single-cylinder, 4-stroke, air-cooled
Maximum Power(kW/rpm) 12.4/8000 12.4/8000
Maximum Torque(N·m/rpm) 16.3/7000 16.3/7000
Displacement(cc) 184.4 184.4
Engine Cylinder Single-cylinder Single-cylinder
Bore x Stroke(mm) 61×63.1 61×63.1
Type of Cooling Air-cooled Air-cooled
Compression Ratio 9.5:1 9.5:1
Starting Method Electric Electric
