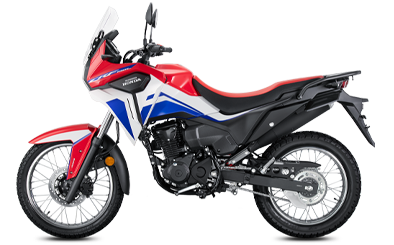

CRF190L

Travel is the release of freedom.
Ride at will wherever the sun shines.
Get closer to the landscape.
Release your emotions a little bit more.
The journey is long and arduous, but never forget the direction in your heart.
Ride through ups and downs like a warrior who never tires.

Follow Your Heart, Conquer the Unbounded

Honda Global Rally Impression Exterior

Adoption of Honda's Globally Impressed Rally Exterior
Full of sporty feel and in sync with global trends

Steadier Handling

Double wishbone frame improves the rigidity of the frame, as well as make the motorcycle body better stabilized for steadier handling.

Better Off-Road Performance

Pro-Link linkage buffer mechanism brings better cushioning performance.Enjoyable and cozy, even on rough roads.

More Comfortable Riding

The vehicle adopts an ergonomically designed three-point seating posture,
coupled with front and rear suspension tuning for comfort,
as well as a flat and narrow seat design,
providing riders with excellent ground reach.

More Convenient to Carry Luggage

Add options such as bumpers and side packs
Easy to load travel equipment, making travel more convenient.
* Actual vehicle configuration does not include bumpers and side packs. Please refer to the actual vehicle delivered by the sales store for the exact configuration.

14L Large Capacity Fuel Tank

Equipped with a large 14L fuel tank, with a range of about 500km.
Fear not the long way, and reach the distant place in your heart.

2-Position Adjustable Windshield

Up/down adjustment range up to 40mm
Reduce wind and sand disturbance
Long-distance travel without losing the fun of motorcycle travel

Single-Channel ABS Anti-Lock Braking System

Able to brake smoothly and freely in a variety of road conditions
Pass through complicated road conditions with peace of mind

High-Efficiency Engine

Equipped with Honda-specific engine and PGM FI electronic injection system
More power and better off-road performance through careful tuning.
O-Ring Sealing Chain

Reduce grease loss and prevent sediment intrusion
Improve the transmission efficiency and service life of the transmission chain

Double-Layer LED Combination Headlights

Small, compact, simple and tough double-layer LED headlights
Complemented by curved LED light bars on both sides
Simple, unique, high brightness, and long range

Rear Taillights

LED rear taillights with uniform brightness and double-layer lampshade
Unique shape for high recognition

LCD Liquid Crystal Meter

Inherit the usual square meter design of Rally models
Panel size: 110 * 37mm
Intuitive, simple, and easy to see driving data at a glance.

CRF190L Configuration

Model and price
CRF190L
Standard Edition

MSRP

-￥
CRF190L
Special Edition

MSRP

-￥

Colors
MAT BALLISTIC BLACK METALLIC

PEARL SUNBEAM WHITE

MAGNA RED
Tricolor

Frame Parameters

Length(mm) 2100 2100
Width(mm) 820 820
Height(mm) 1387 1387
Seat Height(mm) 830 830
Curb Weight(kg) 145 145
Fuel Tank Capacity(L) 14 14
Maximum Speed(km/h) 108 108
Official Average Fuel Consumption(L/100km) 2.4 2.4
Wheelbase(mm) 1387 1387
Minimum Ground Clearance(mm) 241 241
Front Tire 90/90-19 M/C 52P 90/90-19 M/C 52P
Rear Tire 110/90-17 M/C 60P 110/90-17 M/C 60P
Brake FR DISK/RR DRUM FR DISK/RR DRUM

Engine Parameters

Engine Type Single-cylinder, 4-stroke, air-cooled Single-cylinder, 4-stroke, air-cooled
Maximum Power(kW/rpm) 11.5/8500 11.5/8500
Maximum Torque(N·m/rpm) 15.7/6000 15.7/6000
Displacement(cc) 184.4 184.4
Engine Cylinder Single-cylinder Single-cylinder
Bore x Stroke(mm) 61×63 61×63
Type of Cooling Air-cooled Air-cooled
Compression Ratio 9.5:1 9.5:1
Starting Method Electric Electric
